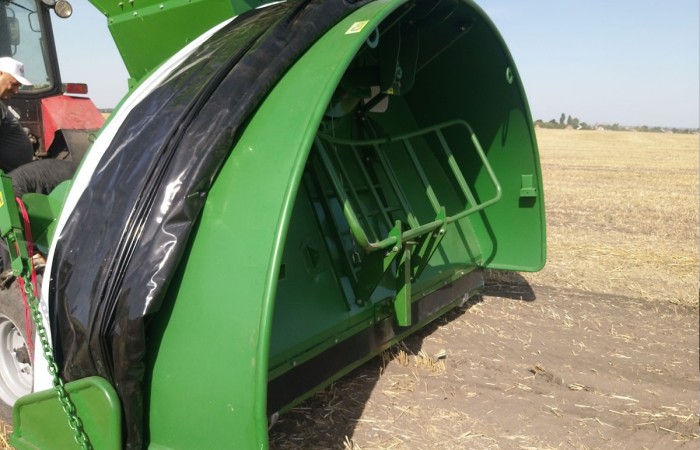

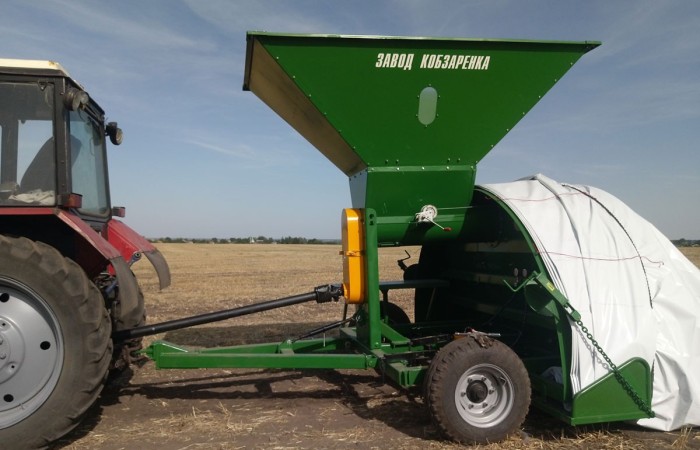

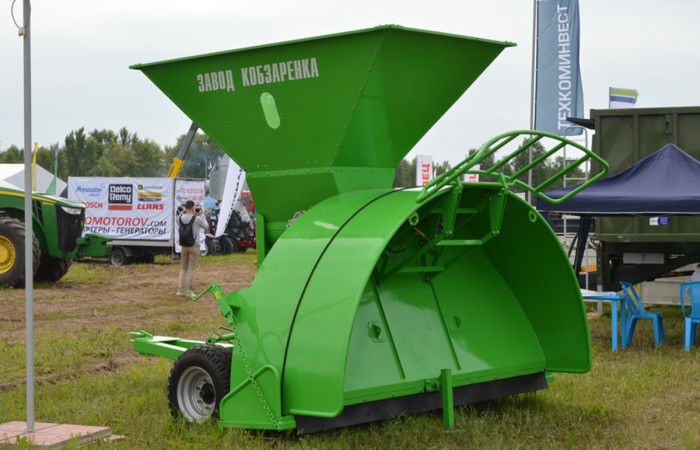

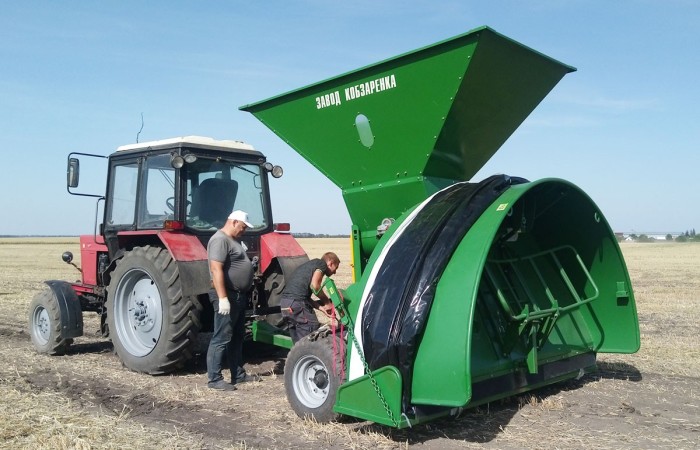

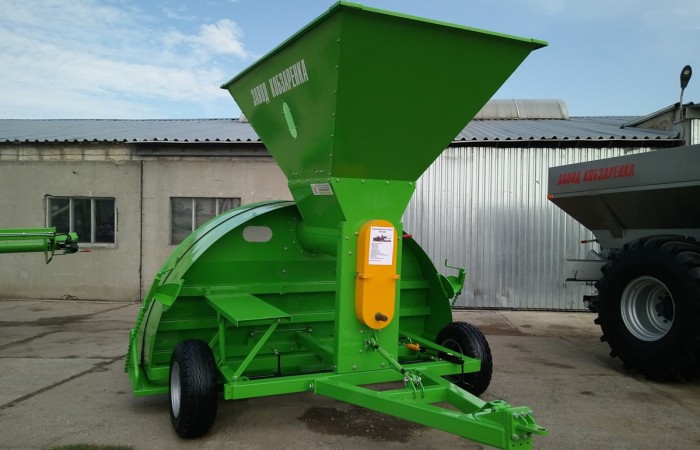

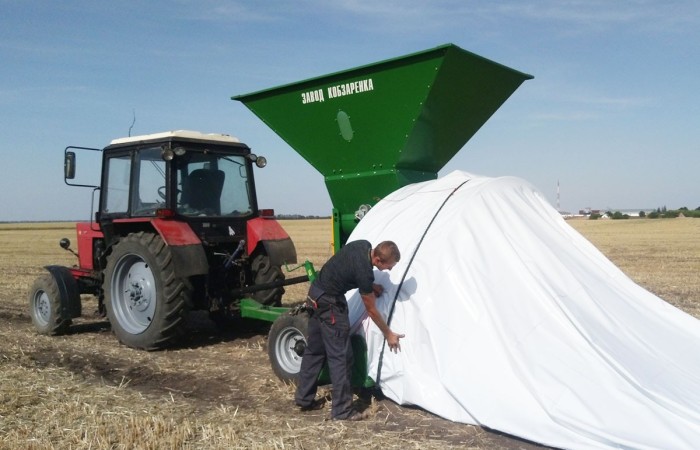

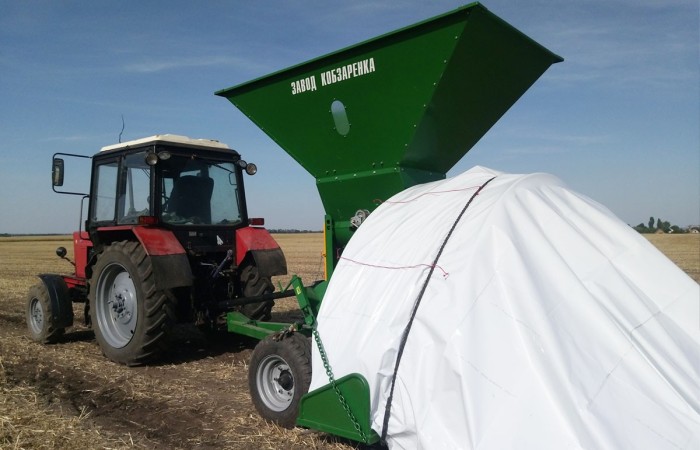

Grain packing machine ZPM-180
ZPM-180 is a packing grain machine
Technical characteristics
|
Own weight, kg |
1 300 |
|
Productivity, t/hour |
180 |
|
Sleeve diameter, mm |
2 700 |
|
Working dimensions |
|
| Length, mm | 4 300 |
| Width, mm | 3 200 |
| Height, mm | 3 100 |
- Action concept: grain is filling up to the reception hopper and moves in a polyethylene bag by auger, which is inside. Powered by SSCT.
- Running gear: single axle unit without springs.
- Wheels: 10,0/75-15,3, 2 pcs.
- Frame:steel, is covered by a rack anti corrosive paint against atmospheric influence.
- Loader: diameter 400 mm, installed on conical bearings.
- Ring: diameter 50 mm, mechanical bearing part.
- Braking system: drum-type, screw mechanical actuating device.
- Cardan shaft
It is intended for packing grain in polyethylene bags for the further open-air storage. Humidity of grain about 18 %. Period of storage - 18 months.
