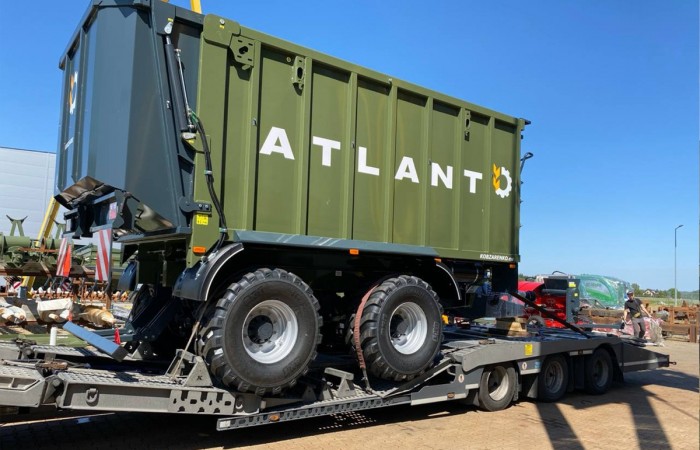

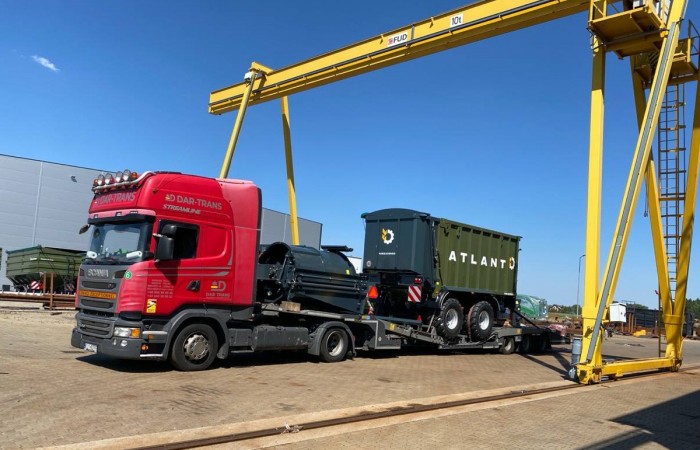

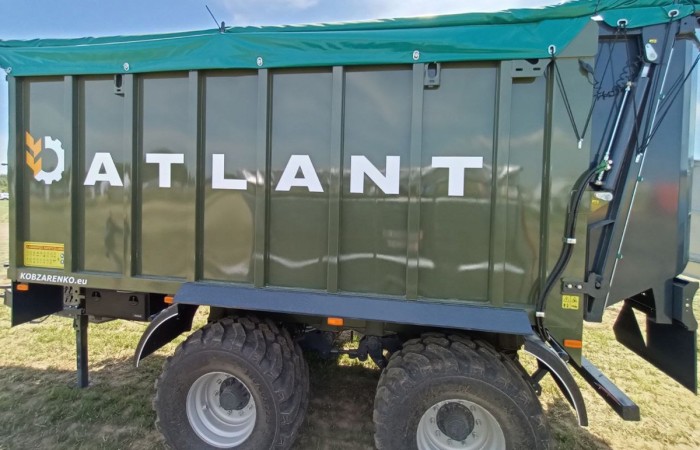

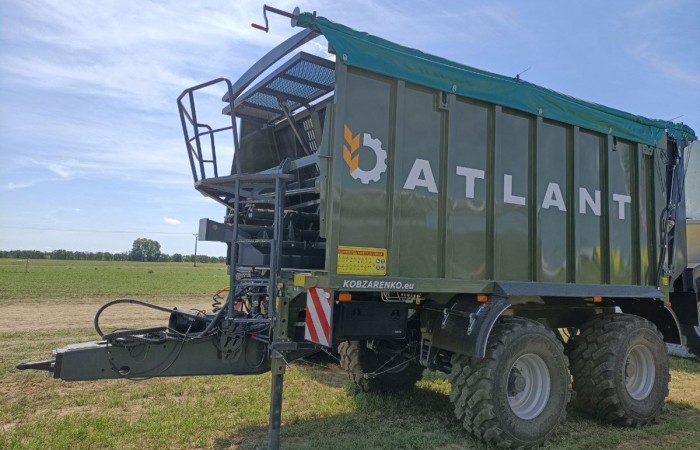

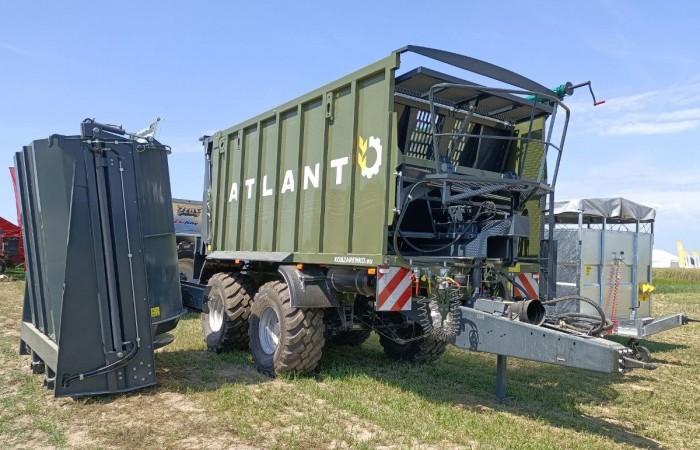

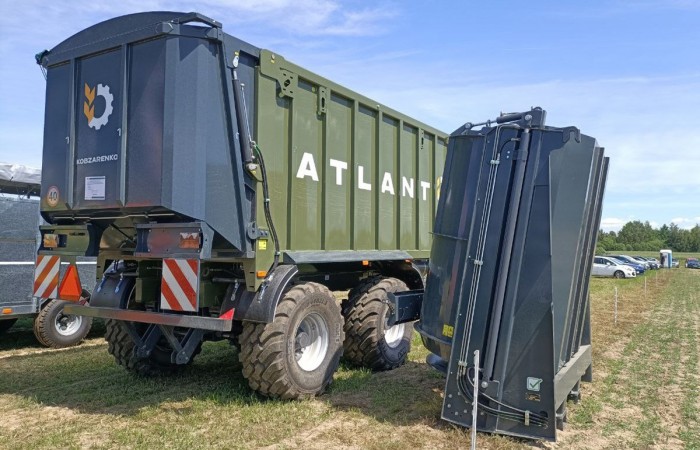

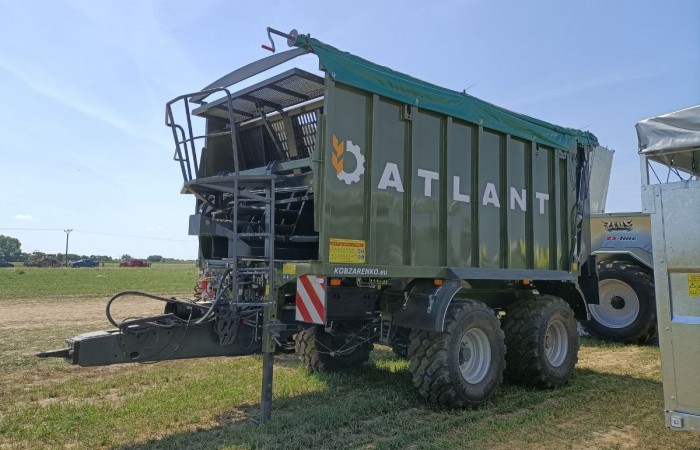

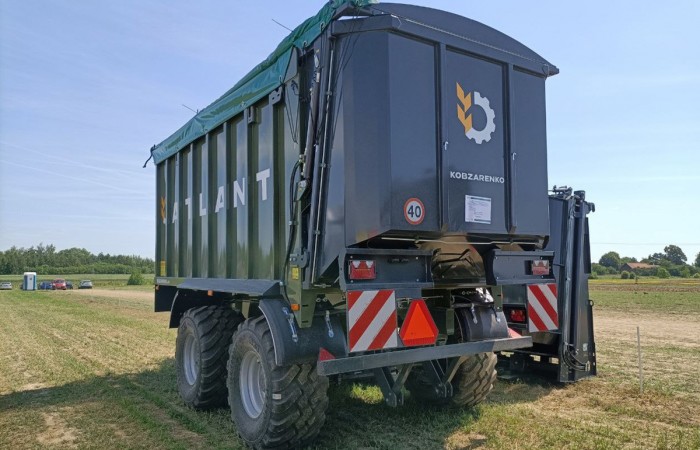

TZP-22 Atlant
Tractor sliding semi-trailer TZP-22 (without homologation):
- TZP-22 capacity 16,5 t, volume 22-26 m3
|
Full weight, kg |
22 500 |
|
Self weight, kg |
6 000 |
|
Capacity, kg |
16 500 |
|
Volume, m3 Volume with stripes, m3 |
22 26 |
| Body with side board: length, mm | 5 650 |
| width, mm | 2 300 |
| height, mm | 1 950 |
| Dimensions: length, mm | 7 630 |
| width, mm | 2 695 |
| height, mm | 3 495 |
| Tires | 560/60 R 22,5 |
| Oil needed, liters | 23 |
| Tractor power needed, h.p. | 150-200 |
| Axles, pcs. | 2 |
- tandem with axels distance 1810 mm
- technically permissible total mass 23450 kg
- technically admissible loading capacity 16500 kg
- volume 22 m3
- ADR Axles.
- Сonnection ring Ø40mm.
- Tires 560/60 R 22,5 (load 6300 kg/40 km/h), ET-0.
- Wabco Double-circuit pneumatic braking system ALB (automatic).
- hydraulic drawbar
- mechanical drawbar support
- slide gate
- ladder
- fender liner front and rear
- toolbox.
- Required amount of oil 26 l,
- required tractor pressure 180(210) bar
- Dimensions of body L*W*H 5640(4755) *2475*1950 mm, floor - 5 mm, boards - 3 mm, sliding wall -5 mm, tailgate - 4 mm.
- The sizes of the semitrailer L*W*H - 7630*2695*3495 mm.
- Body RAL 6003, tailgate and frame RAL 7016.
Universal sliding trailer TZP is unique special trailer constructed as 3 different trailers in 1 machine. It can be tractor trailer for transportation different purposes with pushing unloading, reloading trailer, manure spreader.
