AZP-60

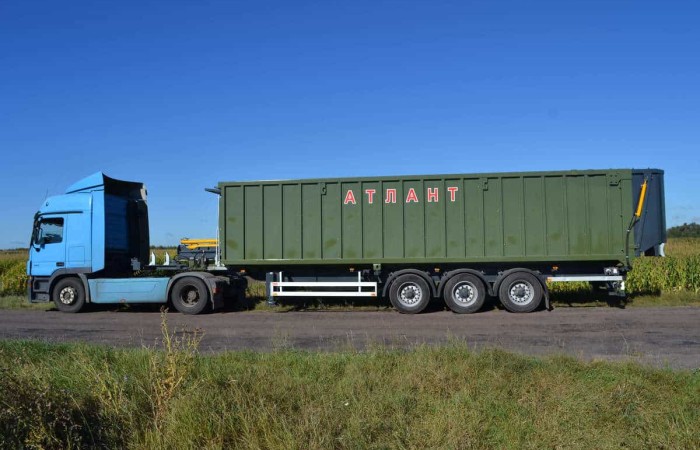

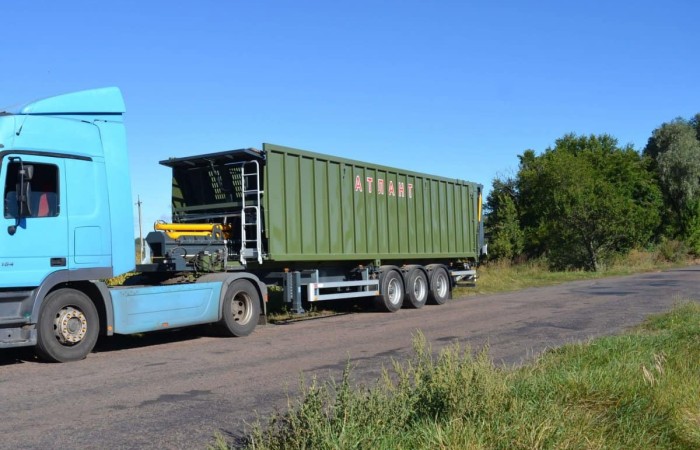

Automobile sliding semi-trailer Atlant AZP-60
AZP-60 – is the same grain carrier, which without any problems transporting grain or other goods on public roads with speed 60-90 km/h, but this machine have a lot benefits against common grain carrier:
- First of all, safe method of unloading

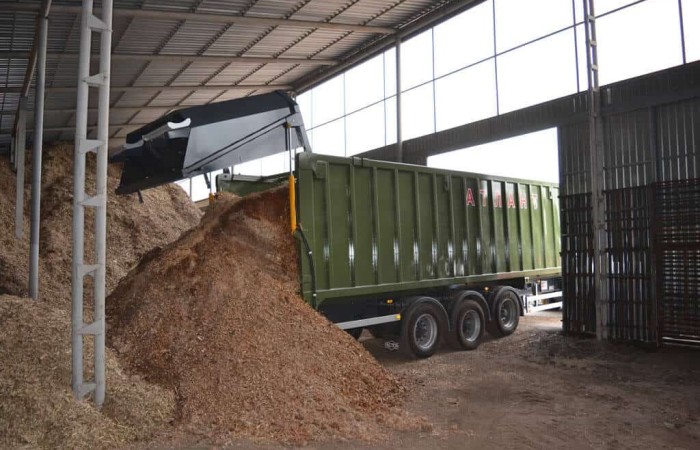

– in AZP it made by sliding method, that provides to semi-trailer possibility to stay straight and removes any chances to make an overturn. Also this method allow to unload all goods in low rooms;

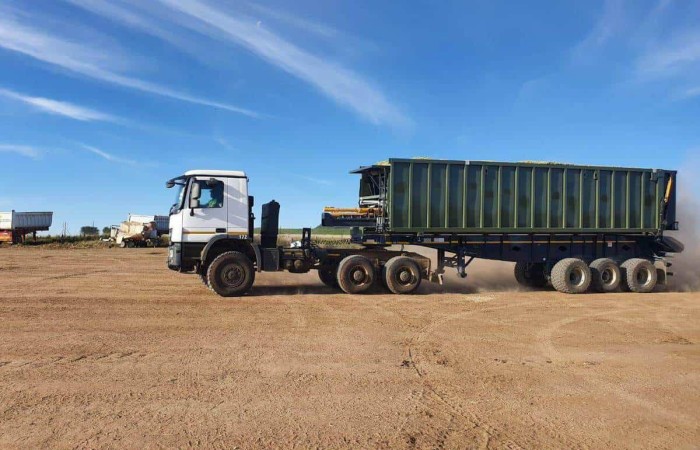

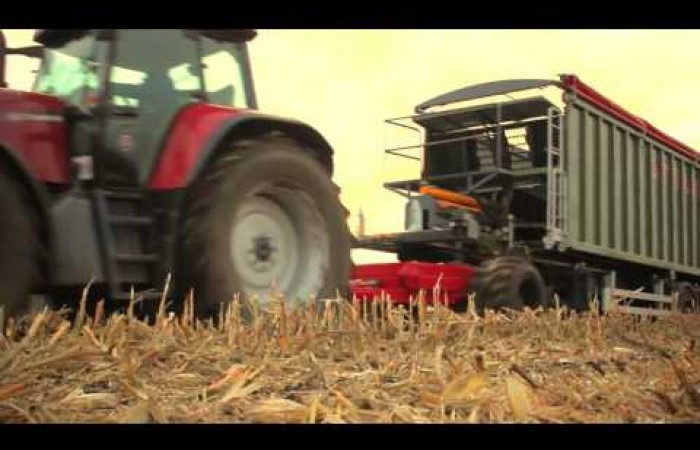

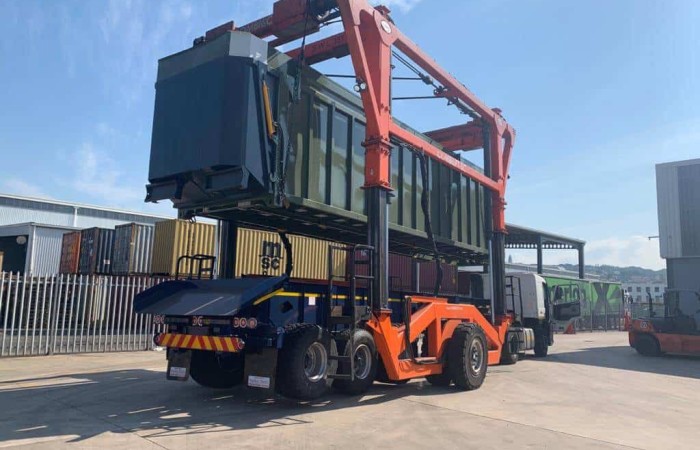

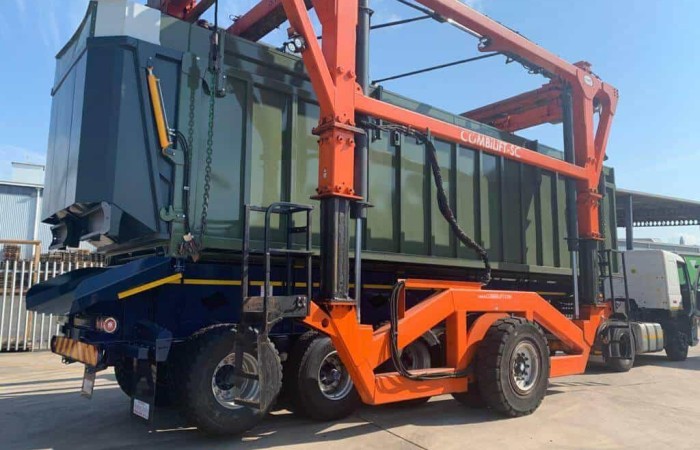

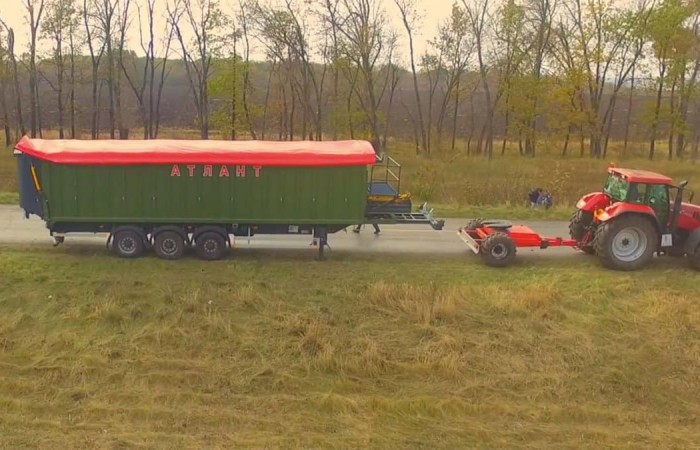

- Second one – AZP-60 will enter any field without any problems, you just need to unhook it from the truck and hook it saddle semi-trailer with tractor and the wet field is not a hindrance for you anymore. The chassis of this machine is simple container carrier, which, if necessary can transport containers, for this you just need to remove body of “ATLANT” and put container on chassis.
-
AZP-46 capacity 22,8 t, volume 46 m3
|
|
AZP-60 with chassis |
Body AZK-60 on container transporter |
|
Full weight, kg |
35 000 |
- |
|
Self weight, kg |
12 150 |
7 150 |
|
Capacity, kg |
22 850 |
22 850 |
|
Volume, m3 |
46 |
46 |
|
Body with board: |
||
|
- length, mm |
10 800 |
10 800 |
|
- width, mm |
2 300 |
2 300 |
|
- height, mm |
2 400 |
2 400 |
|
Tires |
385/65 R22,5 |
- |
|
Oil needed, liters |
≈ 60 |
≈ 60 |
|
Axles, pcs. |
3 |
- |
Specifications AZP-60:
- Quantity of axles - 3

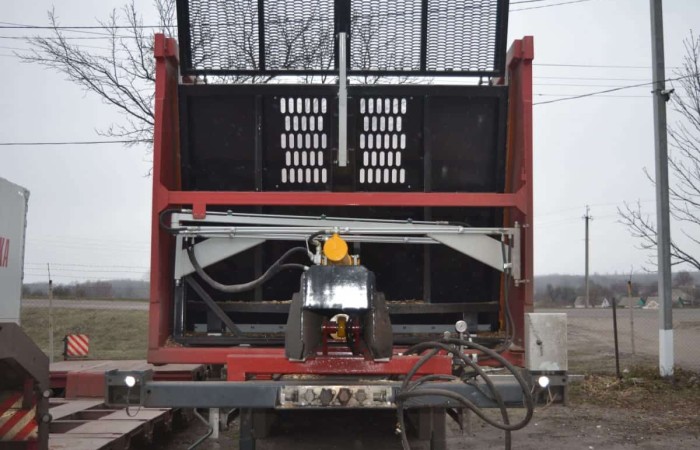

- Hydraulic sliding front wall make a pressure effect up to 80 tons.

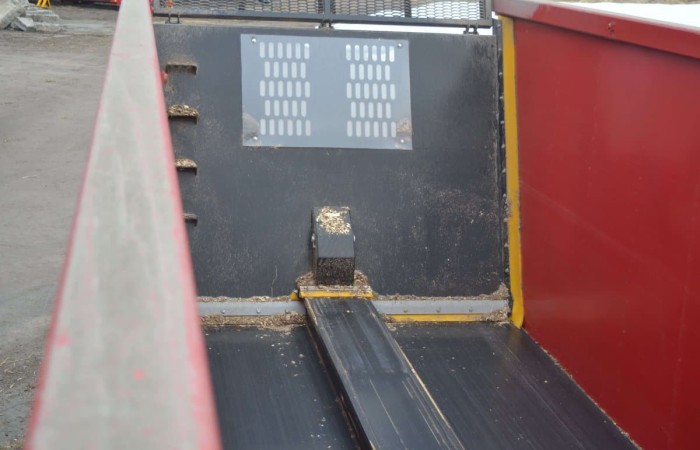

- Floor consist of two parts: first - metallic unmovable welded construction; Second - movable metallic construction, which is moving to the back wall when trailer is unloading content.

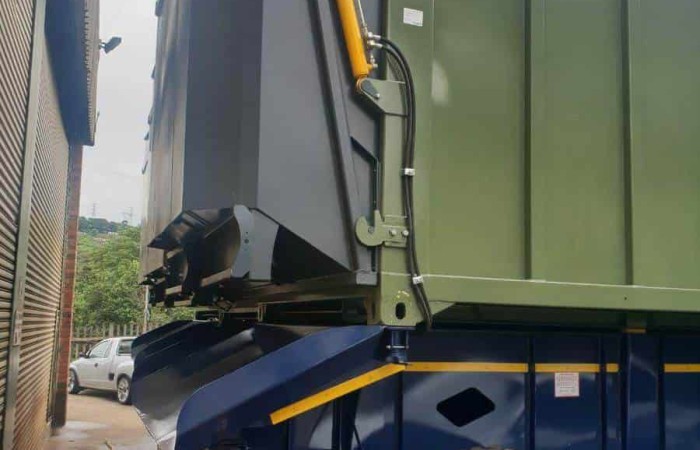

- Back wall is moving by hydraulic.
- Hydro system has three hydraulic cylinders with volume 80 liters.
- Mechanic brace drawbar (height is changeable manually).
- Pneumatic double-contoured breaking system.
- Electricity 12 volts.
Total weight - 35 tons, volume - 46 m3
Dimensions LxWxH - 10000 x 2300 x 2000 mm
