Self-loading bale semi-trailer with rollers PT-24
Self-loading bale semi-trailer with rollers PT-24

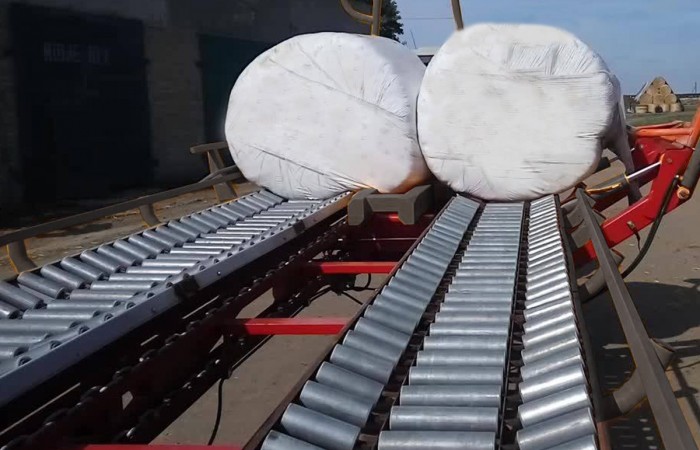

Self-loading bale trailer PT-24 with rollers for picking up, transporting, and unloading wrapped round bales. The roller platform allows transporting bales without stretching or damaging the plastic film wrapped around them.
Loading time for 24 bales is approximately 12 minutes.
|
Charakterystyki |
PT-24 |
|
Quantity of bales pcs. |
24 |
| Diameter/size of bale, m | 1.2 - 1.5 |
|
Capacity, kg - grab |
1 000 |
|
- platform (depends on tires) |
10000 / 15000 |
|
Weight, kg: - self (depends on tires) |
6 250 |
| - full | 16250 / 21250 |
|
Dimensions, mm: - length |
12 700 |
| - width (depends on tires and bale) | 2550 / 2920 |
| - height (depends on tires and bale) | 3800 / 4000 |
| Axles, pcs. | 2 |
| Tires size |
425/70-18 |
| Tractor power, h.p. | 120 |
Basic equipment:
- braking system pneumatic (one or two contoured), hydraulic;
- axles ADR (Italy);
- hydraulic motor WR-160 (Danfos license);
- mechanical drawbar support;
- hydraulic grip for loading the bales.

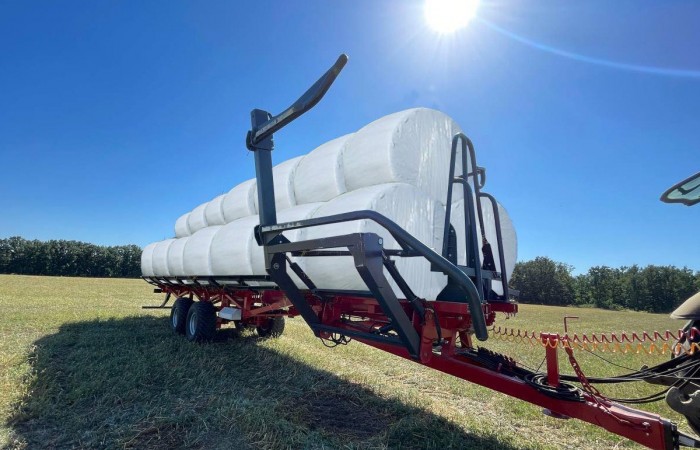

The feature of the baler trailer PT-24 is the technology of continuous loading, meaning the picking up of bales in the field occurs without stopping. A notable advantage of this model is the telescopic arm, which allows loading the third row of bales, thereby saving trips between the field and the farm, transporting up to 24 bales in one trip. Moreover, the versatile hydraulic arm rotates the bale and loads it onto the platform on the go.
The PT-24 also features a rear hydraulic locking roller and a support stand to prevent bales from jumping off the platform during loading and transportation from the field to the storage area. The rear hydraulic locking roller retracts just before tilting the platform, allowing the bale to smoothly slide backward and unload onto the ground.
The roller bale trailer PT-24 is operated by a single operator from the tractor cabin.
