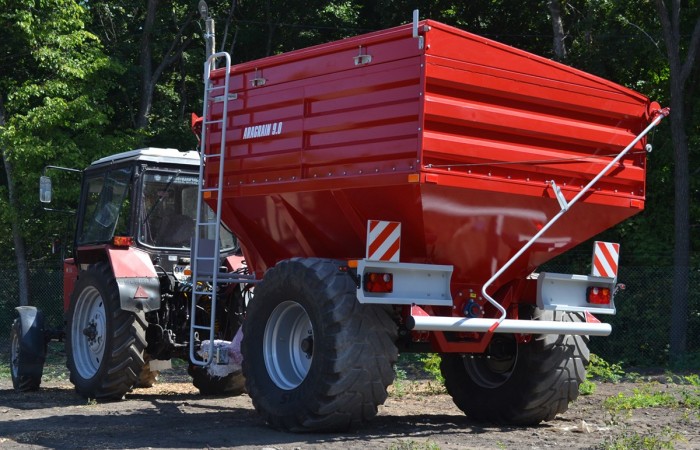

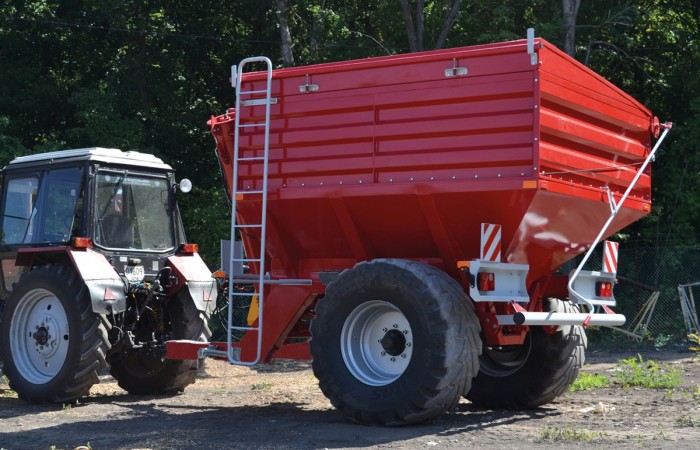

CHASER BIN PBN-9 Kobzarenko

Principle of operation:
Horizontal feed auger transporting grain to vertical unloading auger that reloads it. Auger spirals are made of special steel produced. The spirals are perfectly centered before installing, so that the grain is not exposed to damage.
The augers are powered by the tractor PTO at 540/1000 rpm.

Chaser bin PBN-9 (without homologation)

• technically permissible total mass 9830 kg,
• technically admissible loading capacity 7200 kg,
• volume 9 m3, ADR Axles 2100 mm.
• Сonnection ring Ø40mm.
• Tires 550/60-22,5 16PR (load 6105 kg/30 km/h).

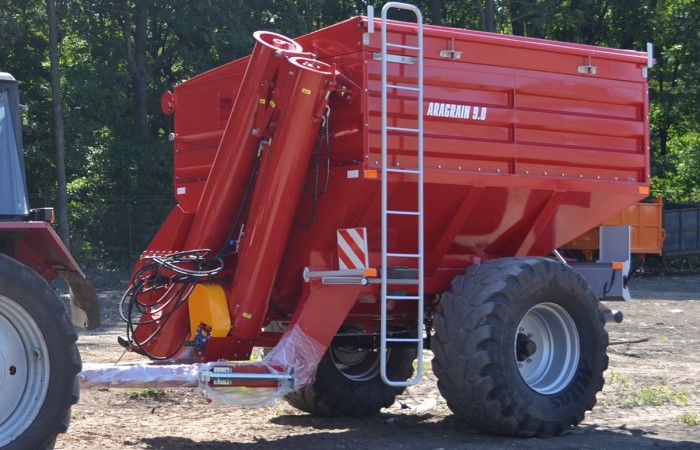

• Vertical auger Ø 300 mm (capacity 1.8 tons/min),
• 2-circuit WABCO mechanical pneumatic brake,
• cardan shaft with cut-off bolt,
• mechanical auger visor,
• hydraulic slide valve with opening level indicator,
• vertical auger without tilt angle adjustment,
• hydraulic lock clamp of the first and second stages of the vertical auger,
• mechanical cleaning flap of the vertical auger,
• mechanical cleaning flap of the horizontal auger - 2 pcs.,
• body and frame separated by metal spacers - 4 pcs.,
• LED top light,
• hydraulic drawbar support,
• ladder,
• DIN signs - 2 pcs.,
• oversized hammer,
• tool box.
• Tractor PTO speed 540/1000 rpm.

Body L*W*H - 3000*2410*1770 mm, watering can - 3-4 mm, profile sides - 2 mm.
The overall dimensions of the trailer L*W*H are 5150*2650*3065(4985) mm.

Unloading height 4180(4490) mm.
Loading height 2815 mm.
Body RAL 6003, frame RAL 7016.

Chaser bin PBN-9 Kobzarenko It is used for:

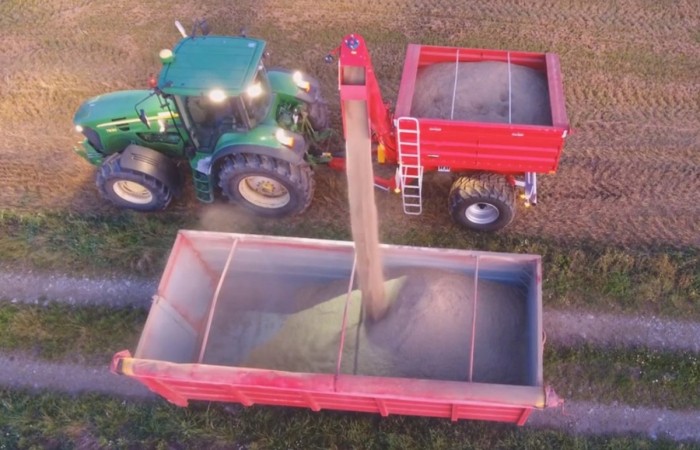

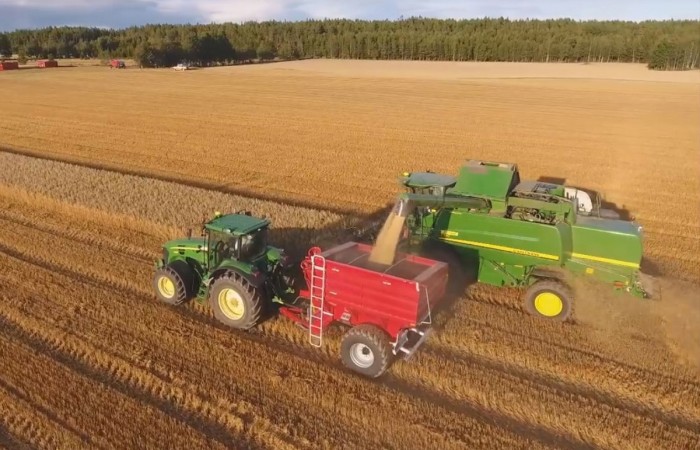

• transportation of grain from the combine and reloading it into the machine;
• loading of seeding machines;
• loading of BigBag.

Advantages:

• increasing of the combine threshing by 30% – combine does not stop and unloads grain while moving;
• working on the wet field;
• reducing of seeding machine idle time under loading (the productivity of seeding machines increases up to 30% per shift);
• weighing of grain on the field with the check issue or sending GPS data to a operator computer.
