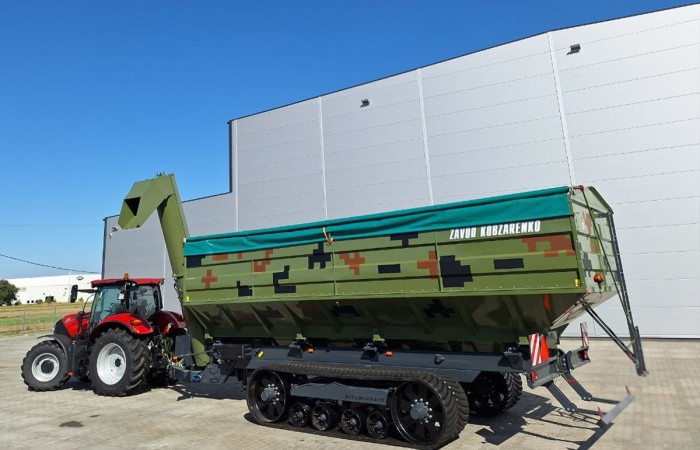

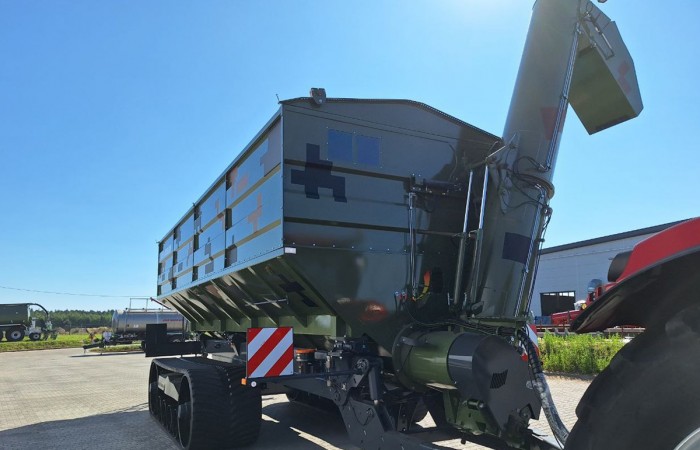

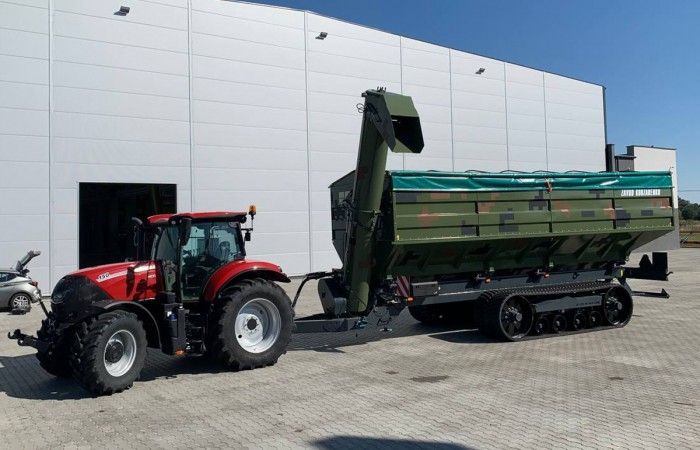

Chaser Bin PBN-50 on tracks Kobzarenko - High Capacity Grain Trailer

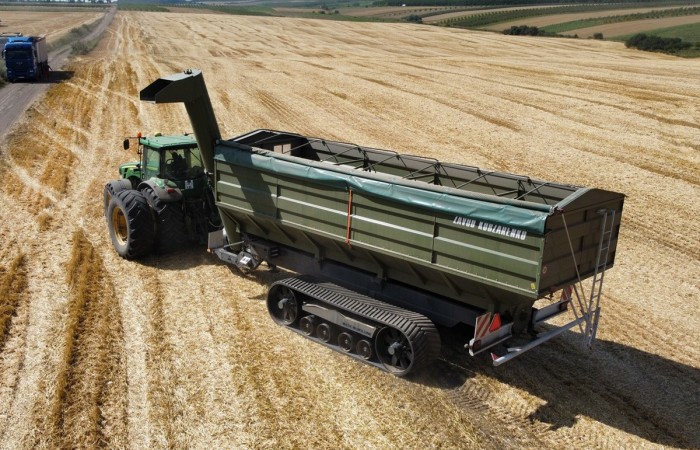

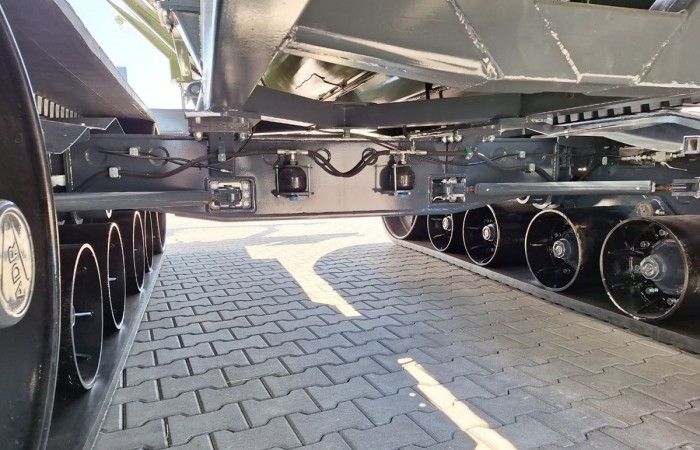

Tracks. The minimum pressure on the soil is less than 1 kg/cm²

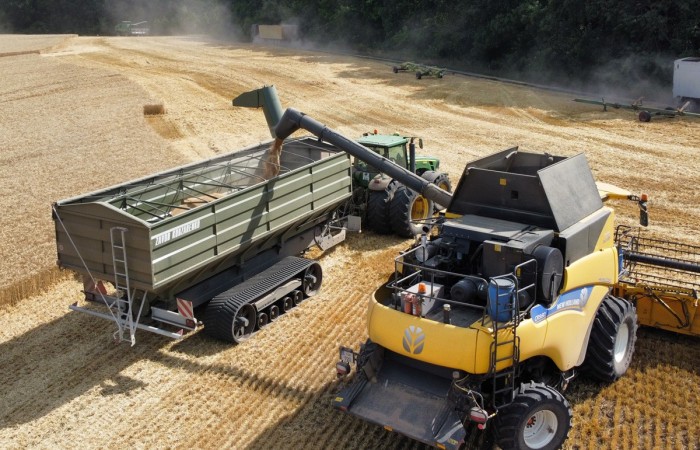

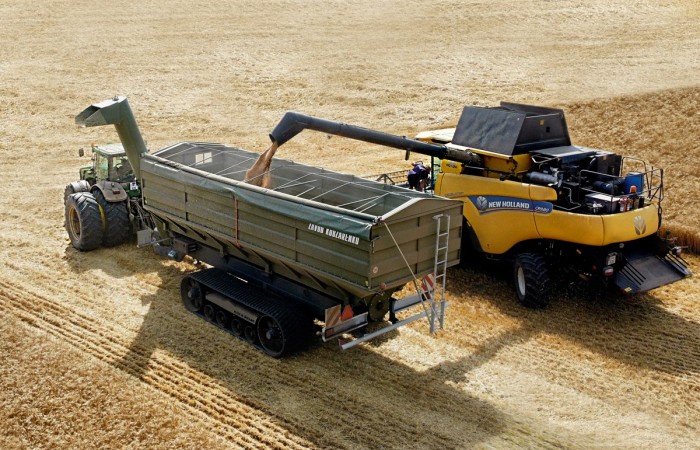

• transportation of grain from the combine and reloading it into the machine;
• loading of seeding machines;
• loading of BigBag.

Principle of operation:
Horizontal feed auger transporting grain to vertical unloading auger that reloads it. Auger spirals are made of special steel produced. The spirals are perfectly centered before installing, so that the grain is not exposed to damage.
The augers are powered by the tractor PTO at 540/1000 rpm.

Chaser bin PBN-50 tracks (without homologation)

• technically permissible total mass 54 500 kg,
• technically admissible loading capacity 38 000 kg,
• volume 50 m3,
• ADR Axles.
• Сonnection ring Ø40mm.
• Vertical auger Ø 622 mm (capacity 12 tons/min),
• cardan shaft with cut-off bolt, mechanical auger visor,
• hydraulic slide valve with opening level indicator,
• vertical auger without tilt angle adjustment,
• hydraulic lock clamp of the first and second stages of the vertical auger,
• mechanical cleaning flap of the vertical auger,
• mechanical cleaning flap of the horizontal auger - 6 pcs.,
• body and frame separated by metal spacers - 8 pcs.,
• LED top light,

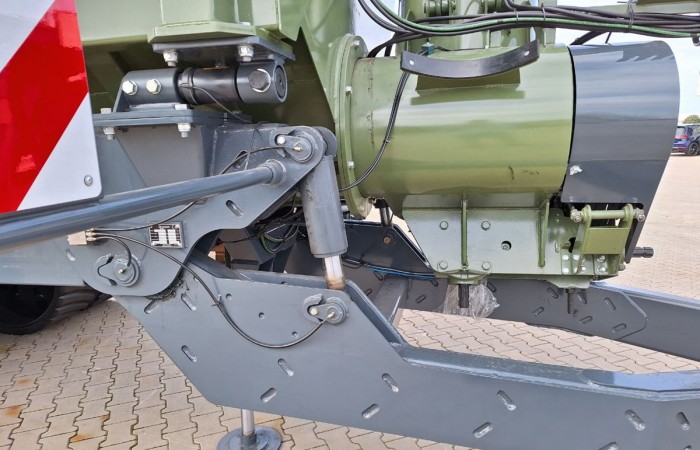

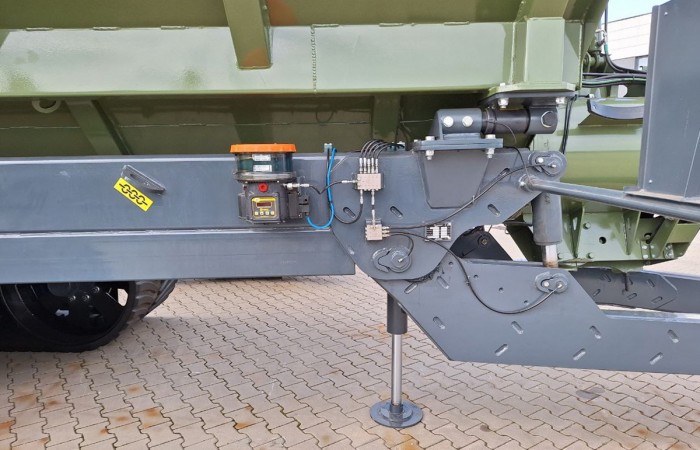

• hydraulic drawbar support,

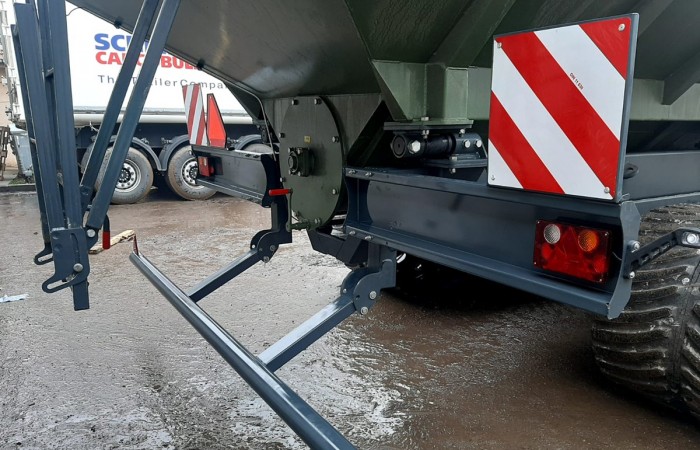

• ladder, DIN, oversized hammer, tool box.
• Tractor PTO speed 540/1000 rpm.

Body L*W*H - 8890*3000*2390 mm, watering can - 4-5 mm, profile sides - 3 mm.
The overall dimensions of the trailer L*W*H are 11465*3765*3735(5365)mm.

Unloading height 4070(4545) mm.
Loading height 3755 mm.
Body RAL 6003, frame RAL 7016.

Advantages:

• increasing of the combine threshing by 30% – combine does not stop and unloads grain while moving;
• working on the wet field;
• reducing of seeding machine idle time under loading (the productivity of seeding machines increases up to 30% per shift);
• weighing of grain on the field with the check issue or sending GPS data to a operator computer.

Additional equipment:

• weighing system with printer, GPS, GPRS, Tablet with GPRS (Dinamica Generale Italy);
• awning system;
• PVC hose Ø 300 mm, 400 mm, length 1,2m for seeders;
• hydraulic adjustable peak of auger/ incline of auger;
• sleeve-elongator SHRP-5 Ø 250mm, leght 5 m for seeders;
• establish of variable body: mineral fertilizer, barrels, dumping body on the chassis of bunker;
• steering axle
