Chaser bin - the reloading store bunker

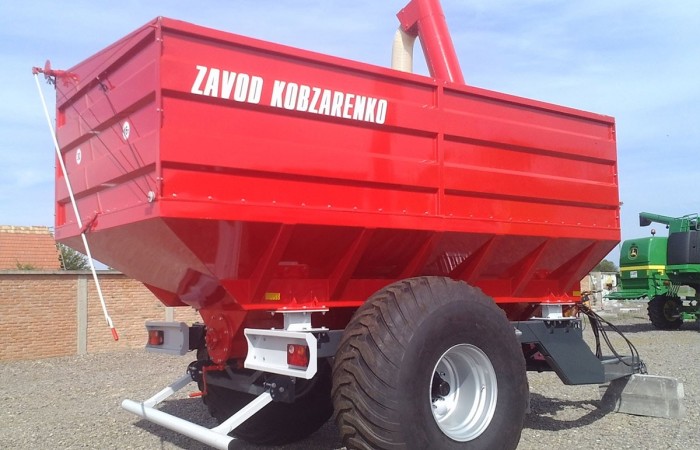

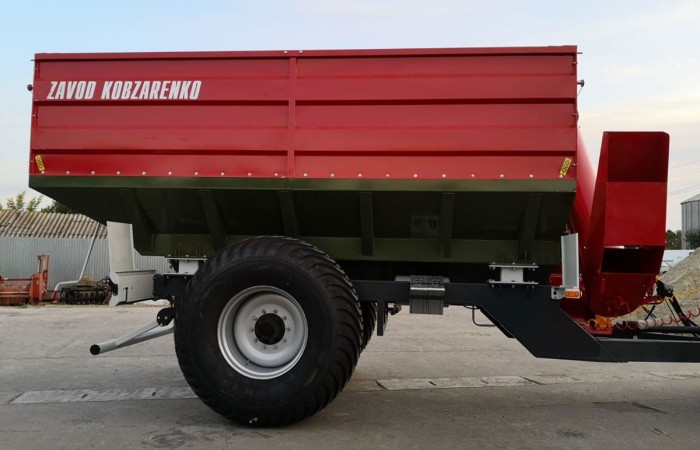

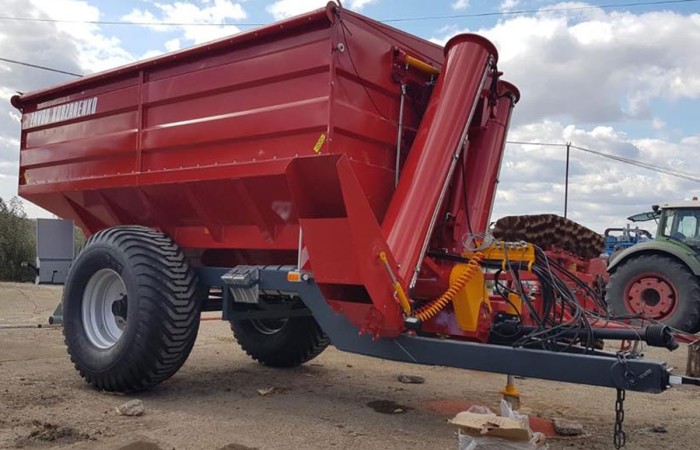

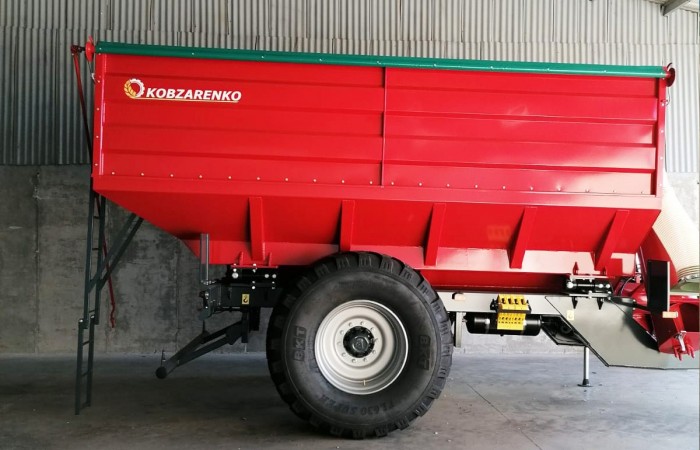

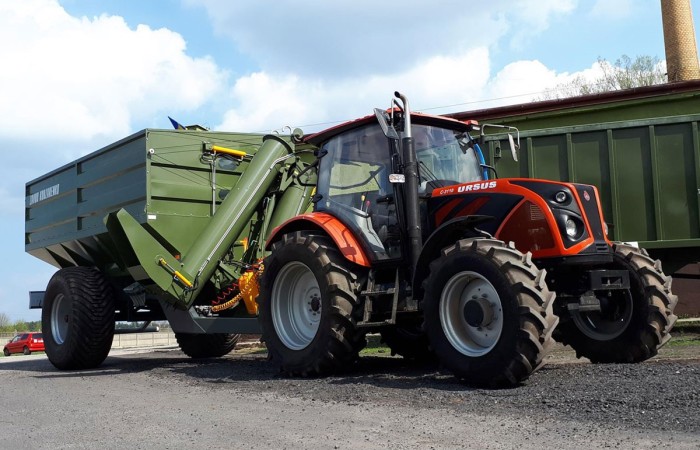

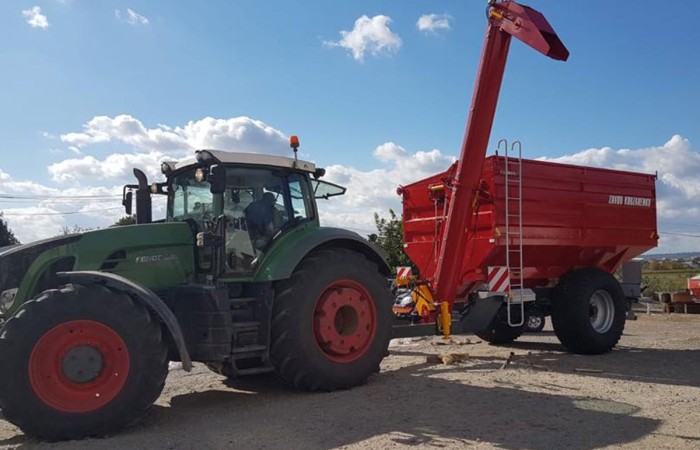

The reloading trailer PBN-20
Grain reloading trailer consist of one of the best EU parts, for example: Italian suspension (ADR firm), Polish discs (Pronar) with BKT, Mitas tires. All reducers and cardan shafts are Italian (Bondioli and Pavesi).
This model is also available on tandem, double-axle (ADR Italy)
|
Technical characteristics |
Axles ADR |
|
Full weight, kg |
19 935 |
|
Trailer weight, kg |
4 885 |
|
Load-carrying capacity, kg |
15 050 |
| Loading on a ring, kg | 2 000 |
| Sizes Length of trailer, mm | 7 540 |
| Height of trailer, mm | 3 370 |
| Width of trailer, mm | 2475 / 2950 |
| Volume, m3 | 20 |
| Auger, Diameter, mm | 420 / 520 |
| Unloading height, mm | 4 300 |
| Unloading rate, t/min |
3/6 6/12 |
| Support of the drawbar | hydraulically |
| Coupling with tractors, B.H.P. | 120-150 |
| Tires | 650/65-30,5 |
| Maximum speed, km/h | 30 |
| Braking system | The one-planimetric |
Technical characteristics of reloading trailer
- Single-axle sprung (ADR Italy) size 150х2300 tubular
- Tires 650/65-30,5 (load 9,08t. while30km/h.)
- Pneumatic braking system (possible: hydraulic,mixed)
- Body V-20m3 vehicle capacity 16t.
- Auger Ø420 (520) mm. (productivity 3 or 6 t/min., unloading height 4,3m.)
- Replaceable trailed ring Ø40, 50, 90 mm.
- Hydraulic trailer hitch brace
- Driving reducer S2100 (produced by Bondioli and Pavesi, Italy)
- Auger lip
- Service ladder
- Horizontal auger cleaning mechanism (three windows)
Additional options
- Weighting system with the printer (DinamicaGenerale,Italy)
- Awning system (unpacks from the ground)
- Cardan shaft with protection coupling (cutoffbolt)
- PVC sleeve Ø 300/400 мм., length 1,2 m. (for seeding machines loading)
- Replace trailed ring Ø40; Ø50 (ScharmullerAustria) on hemisphere 80 mm diameter
- Auger lip (regulates hydraulically)
- Trailed hemisphere to the ball Ø80
- Auger Ø 520mm. (productivity 6 or 12 t/min)

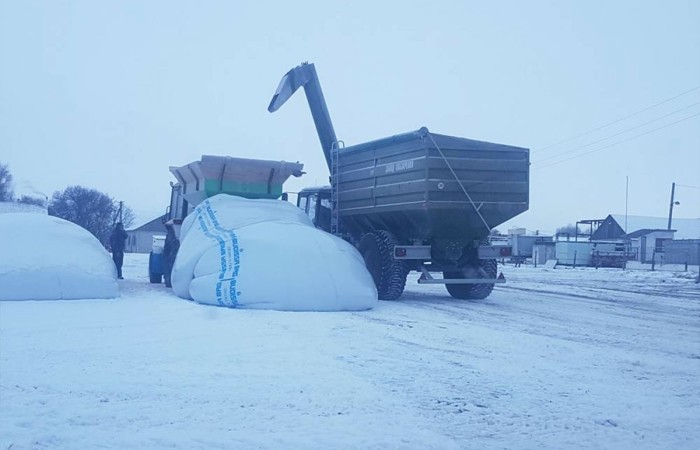

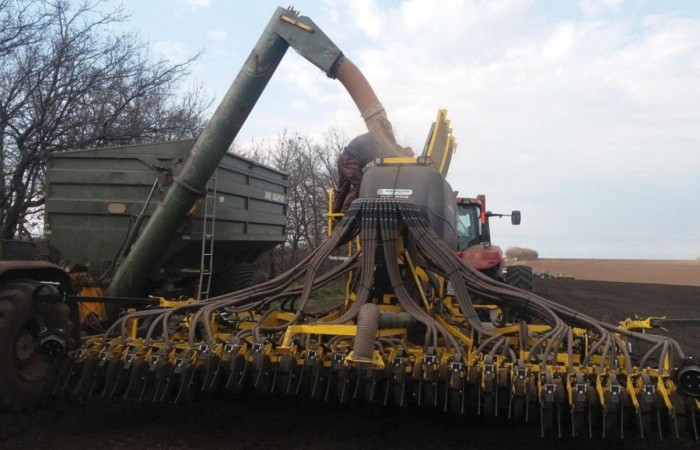

Reloading trailer special constructed for transportation of grain from the combine and reloading it into other machines or containers. Also this machine can provide fast loading of seeders and loading BigBags. Main advantages: 1. Increasing of the combine threshing by more then 30% - harvester does not stop and unloads grain while moving. 2. Working on the wet field (Big tires with low pressure can easily goes through light swamps and mud). 3. Reducing of seeding machine idle time under loading (the productivity of seeding machines increases up to 30% per shift). 4. Weighing of grain on the field with the check issue or sending GPS data to an operator computer.
