Reloading semi-trailer

«ATLANT» – Reloading semi-trailer

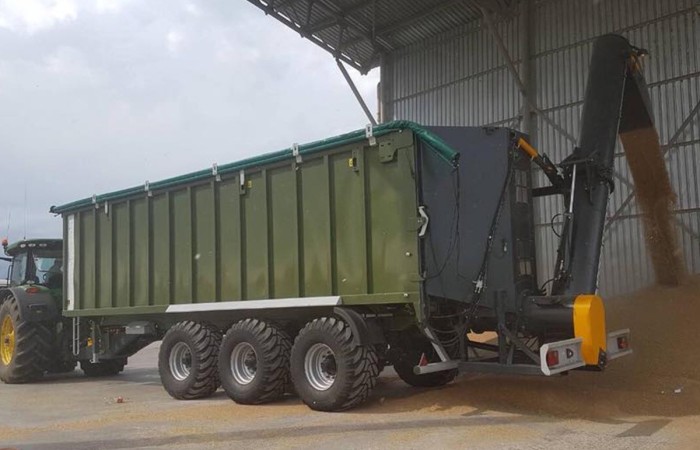

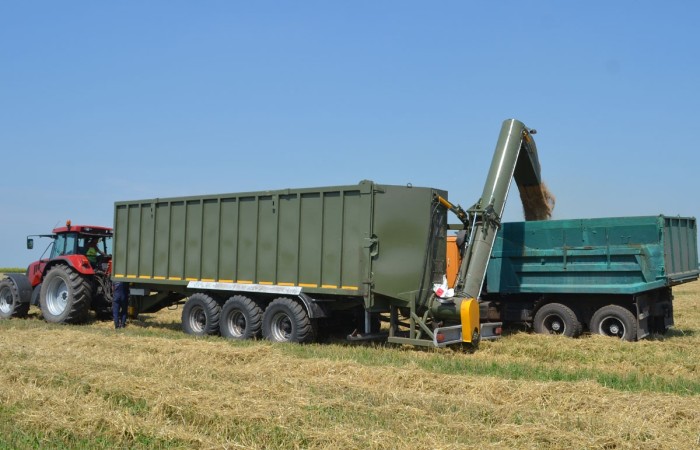

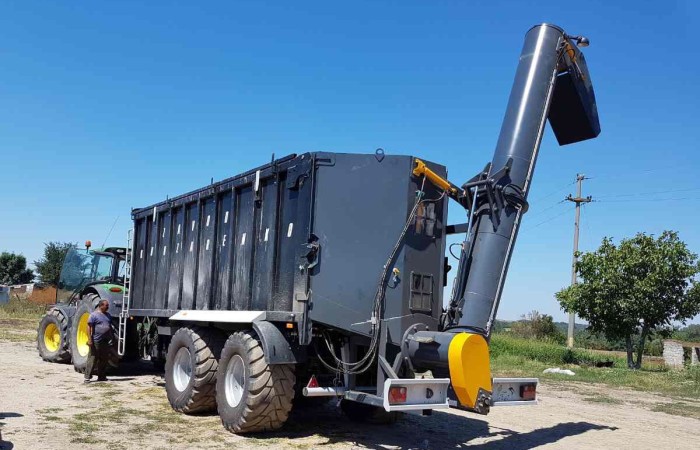

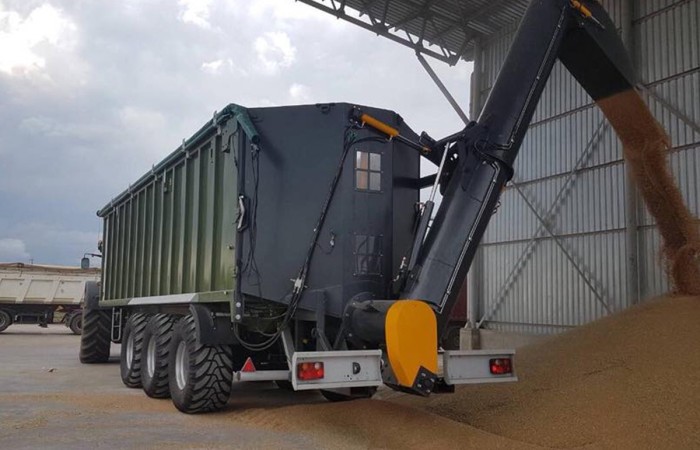

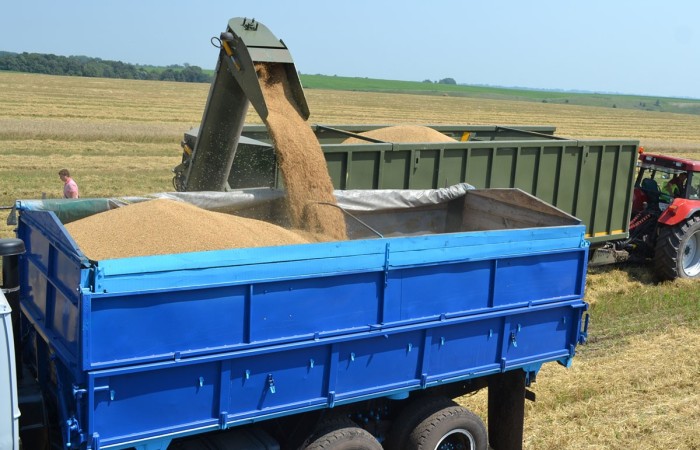

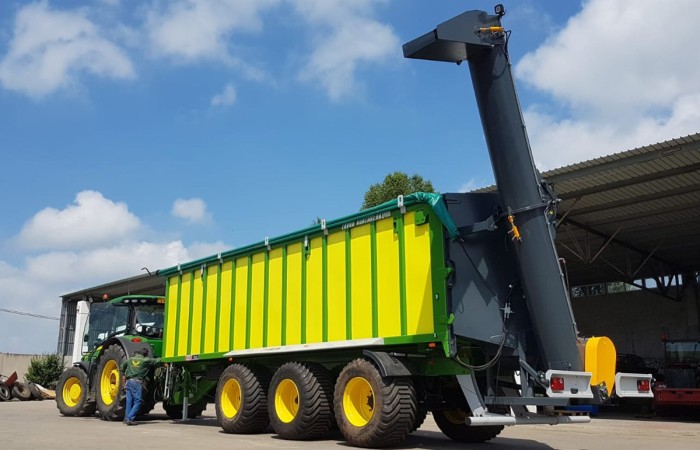

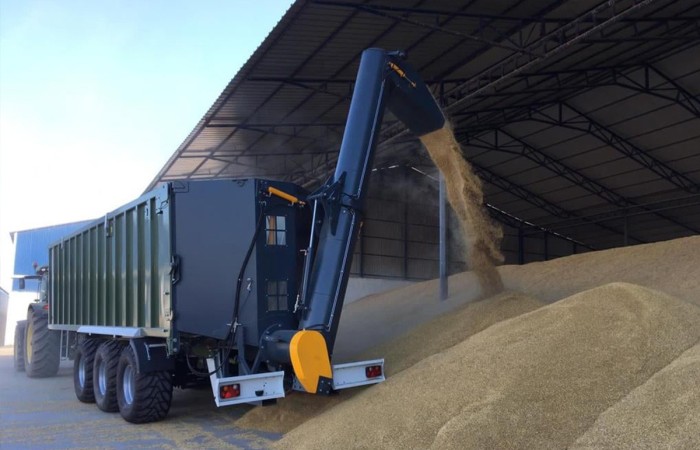

Reloading auger.
Installed instead of the rear side of the semitrailer, driven from the tractor PTO at 540 rpm.

The screw capacity is 6 tons per minute, the screw diameter is 520 mm. It is equipped with an automatic safety system - a torsional load regulator, which, at peak loads, stops the feeding of grain to the discharge auger, blocking the supply of oil to the hydraulic cylinder. The auger is equipped with a hydraulic damper, which regulates the rate of grain feeding into the conveyor.
